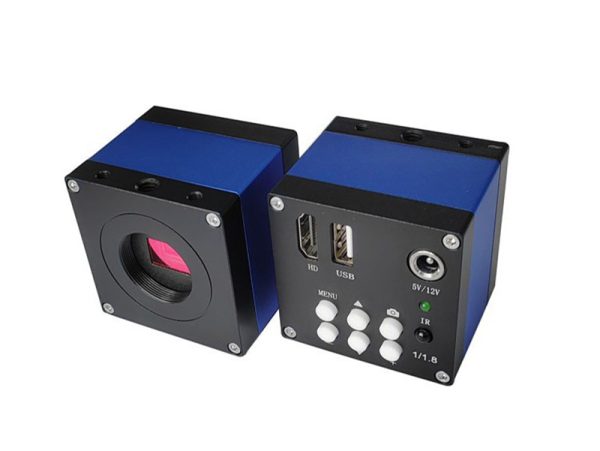

B31 blue measurement camera 1/1.8'' cmos sensor
  1. B31 blue measurement camera 1/1.8'' cmos sensor

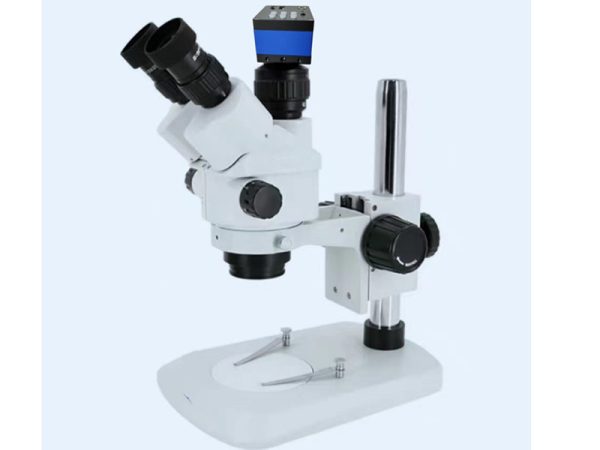

B31 Blue-1/1.8 -4K 8MP 1/1.8” Sony CMOS HDMI USB high definition 60fps Industrial Camera with key operation Microscope Camera

cámara de medición industrial/промышленная измерительная камера/caméra de mesure industrielle/Industrielle Messkamera

· 4K Ultra HD 8MP, 1/1.8″ Sony CMOS sensor

· C/CS mount , HDMI + USB interface

· High Definition 3840*2160, Full hd HDMI Display

· Multi-function camera (Zoom imaging in electronics and precision machinery, PCB inspection, scientific research analysis, cellphone repair,jewelry identification etc.)

· Functions of snap, video recorder, cross line etc.

· Industrial camera with key operation

· USB port can be connected to computer for UVC camera use

· With remote control

Category: Tags: , , , , , , , , , , , , , , , , ,

B31 Blue-1/1.8 Specification

SensorUSB:8MP,1/1.8" Sony CMOS
HDMI:5.3MP,1/2.4" Sony CMOS
Effective Pixels3840*2160
Bit12bit
Pixel Size(μm)2.0μm*2.0μm
FPSUSB:3840*2160@15fps
HDMI:3072*1728@50fps
SharpnessAbove 900TV line
Scan modeProgressive scan
Shutter TypeElectronic shutter
Dynamic Range>90dB
SNR55dB
Sensitivity2.0 V/lux-sec (550nm)
Exposure ModeManual / Auto
White BalanceManual / Auto
Lens MountC/CS
InterfaceHDMI + USB2.0
Image CaptureU-disk memory
Output Resolution1920*1080(HDMI)
3840*2160(USB)
USB functionUVC camera or U-disk
Remote ControlYes
Power SupplyDC 12V/1A Adapter
Size53*53*45mm
Functions1.One USB 2.0 port for U-disk memory use or connected to computer for UVC camera use.
2.Save the images to usb drive,view images or videos on usb drive.
3.Cross:1-8 cross group,color optional,and line is adjustable in width.
