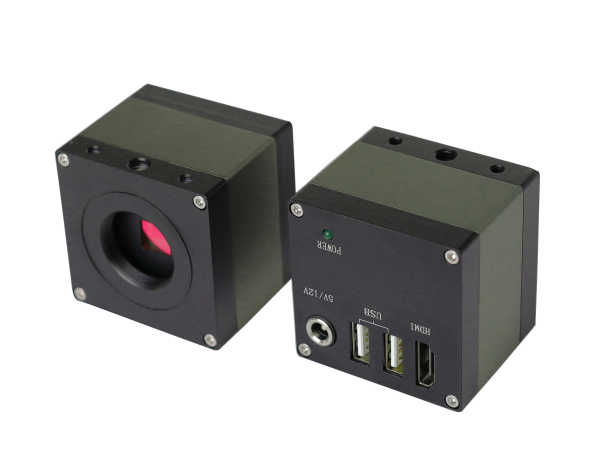

B32T-2K 4MP 1/3” Sony CMOS HDMI USB high definition 30fps Industrial Measurement Camera Microscope Camera

cámara de medición industrial/промышленная измерительная камера/caméra de mesure industrielle/Industrielle Messkamera

· 2K HD 4MP, 1/3″ Sony CMOS sensor

· C/CS mount , HDMI+USB interface

· High Definition 2560*1440, Full hd HDMI Display

· Multi-function measurement and magnification use (Zoom imaging in electronics and precision machinery, PCB inspection, scientific research analysis, cellphone repair,jewelry identification etc.)

· Functions of snap, video recorder, screen shot, scale ruler, calibration, cross line etc.

· With built-in Linux operating Microscope System controlled by USB Mouse

Category: Tags: , , , , , , , , , , , , , , , ,

B32T Specification

Sensor4MP,1/3" Sony CMOS
Effective Pixels2560*1440
Bit12bit
Pixel Size(μm)2.0μm*2.0μm
FPS30fps
SharpnessAbove 1200TV line
Scan modeProgressive scan
Shutter TypeElectronic shutter
Dynamic Range>90dB
SNR55dB
Sensitivity2.0 V/lux-sec (550nm)
Exposure ModeManual / Auto
White BalanceManual / Auto
Lens MountC/CS
InterfaceHDMI + 2*USB2.0
System OperationWith USB Mouse
Image CaptureU-disk memory
HDMI Resolution1920*1080 60Hz(Default)
2560*1440 60Hz
Operating SystemLinux
Power SupplyDC 5V/1A Adapter

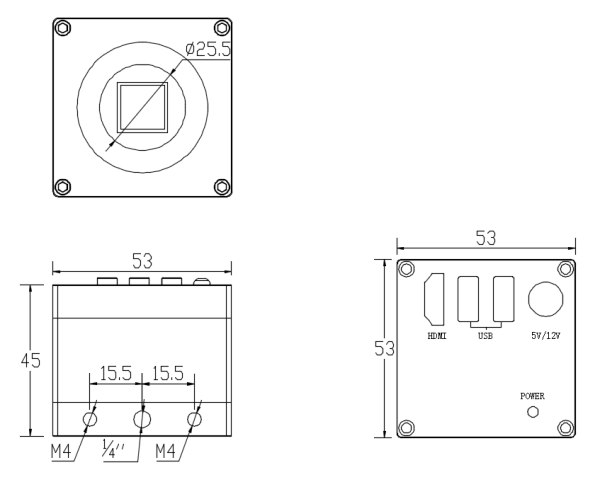

Size53*53*45mm
Menu Function1.Two USB 2.0 ports(One USB mouse,one U-disk memory).
2.Save the images to usb drive,view images or videos on usb drive.
3.Cross:1-12 cross group,Color optional,and line is adjustable in width.
4.Scale Ruler:The number of pixels in each interval can be adjusted arbitrarily.
5.Measurement functions: The distance between two points, rectangle, circle, angle, etc.
