2MP microscope camera industrial camera
  1. 2MP microscope camera industrial camera

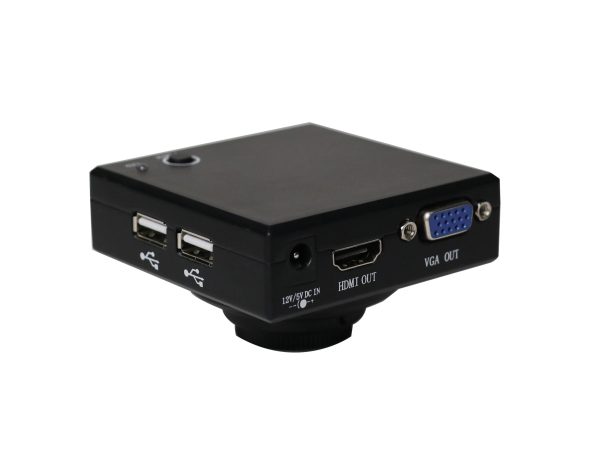

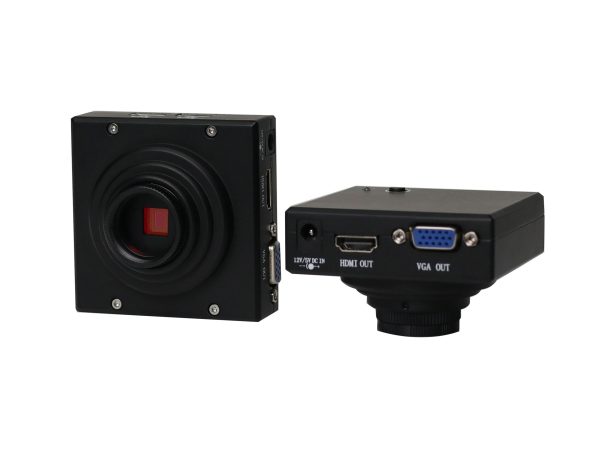

B35-1080P 2MP 1/2.8” Sony CMOS VGA HDMI USB high definition 60fps Industrial Measurement Camera Microscope Camera

cámara de medición industrial/промышленная измерительная камера/caméra de mesure industrielle/Industrielle Messkamera

· 1080P HD 2MP, 1/2.8″ Sony CMOS sensor

· C/CS mount , VGA+HDMI+USB interface

· High Definition 1920*1080, Full hd HDMI Display

· Multi-function measurement and magnification use (Zoom imaging in electronics and precision machinery, PCB inspection, scientific research analysis, cellphone repair,jewelry identification etc.)

· Functions of snap, video recorder, screen shot, scale ruler, calibration, cross line etc.

· With built-in Linux operating Microscope System controlled by USB Mouse

Category: Tags: , , , , , , , , , , , , , , , , , ,

B35 Specification

Sensor2MP,1/2.8" Sony CMOS
Effective Pixels1920*1080
Bit12bit
Pixel Size(μm)2.9μm*2.9μm
FPS60fps @1920*1080
SharpnessAbove 1000TV line
Scan modeProgressive scan
Shutter TypeElectronic shutter
Dynamic Range>90dB
SNR55dB
Sensitivity2.0 V/lux-sec (550nm)
Exposure ModeManual / Auto
White BalanceManual / Auto
Lens MountC/CS
InterfaceVGA + HDMI + 2*USB2.0
System OperationWith USB Mouse
Image CaptureU-disk memory
Output Resolution1920*1080 60Hz(Default)
Operating SystemLinux
Power SupplyDC 12V/1A Adapter

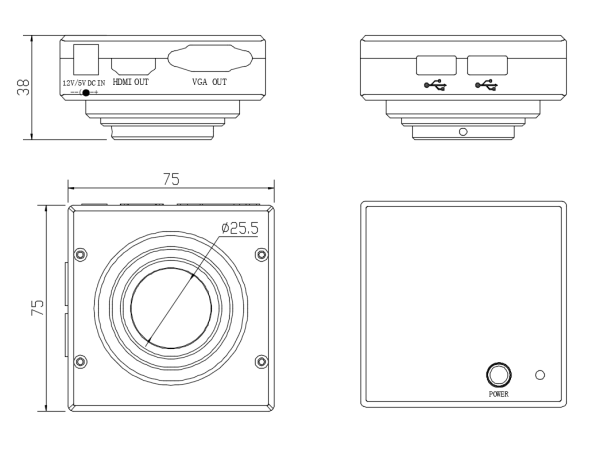

Size75*75*50mm
Menu Function1.Two USB 2.0 ports(One USB mouse,one U-disk memory).
2.Save the images to usb drive,view images or videos on usb drive.
3.Cross:1-12 cross group,color optional,and line is adjustable in width.
4.Scale Ruler:The number of pixels in each interval can be adjusted arbitrarily.
5.Measurement functions: The distance between two points, rectangle, circle, angle, etc.
