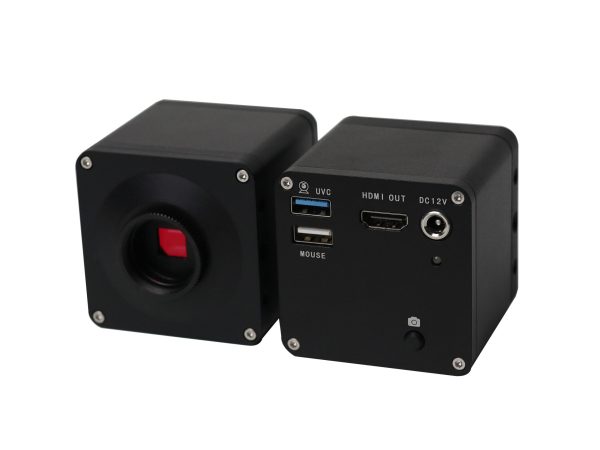

B37T-4K 8MP 1/1.8” Sony CMOS HDMI USB UVC high definition 60fps Industrial Measurement Camera Microscope Camera

cámara de medición industrial/промышленная измерительная камера/caméra de mesure industrielle/Industrielle Messkamera

· 4K Ultra HD 8MP, 1/1.8″ Sony CMOS sensor

· C/CS mount , HDMI+USB interface

· High Definition 3840*2160, Full hd HDMI Display

· Multi-function measurement and magnification use (Zoom imaging in electronics and precision machinery, PCB inspection, scientific research analysis, cellphone repair,jewelry identification etc.)

· Functions of snap, video recorder, screen shot, scale ruler, calibration, cross line etc.

· With built-in Linux operating Microscope System controlled by USB Mouse

· Two USB 2.0 ports(One USB mouse, one U-disk memory use or connected to PC for UVC camera use)

Category: Tags: , , , , , , , , , , , , , , , , ,

B37T Specification

Sensor8MP,1/1.8" Sony CMOS
Effective Pixels3840*2160
Bit12bit
Pixel Szie(μm)2.0μm*2.0μm
FPS60fps@3840*2160
60fps@1920*1080
SharpnessAbove 1800TV line
Scan modeProgressive scan
Shutter TypeElectronic shutter
Dynamic Range>90dB
SNR55dB
Sensitivity2.0 V/lux-sec (550nm)
Exposure ModeManual / Auto
White BalanceManual / Auto
Lens MountC/CS
InterfaceHDMI + USB2.0*2
System OperationWith USB Mouse
Image CaptureU-disk memory
Output Resolution3840*2160 60Hz（ Default ）
1920*1080 60Hz
Operating SystemLinux
Power SupplyDC 12V/2A Adapter

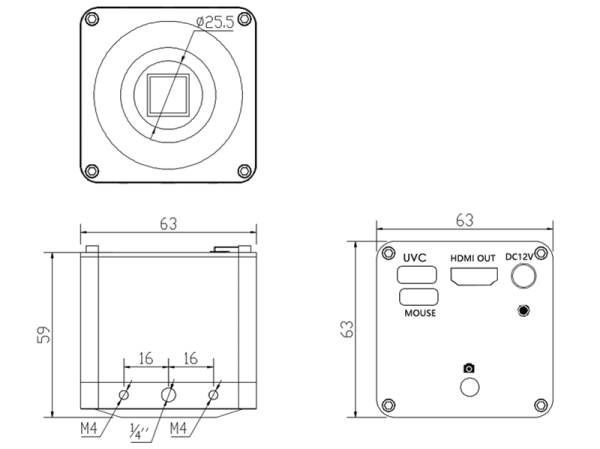

Size63*63*63mm
Functions1.Two USB ports(One USB mouse, one U-disk memory use or connected to PC for UVC camera use).
2.Save the images to usb drive,view images or videos on usb drive.
3.Cross:1-12 cross group,color optional,and line is adjustable in width.
4.Scale Ruler:The number of pixels in each interval can be adjusted arbitrarily.
5.Measurement functions: The distance between two points,rectangle,circle,angle,etc.
