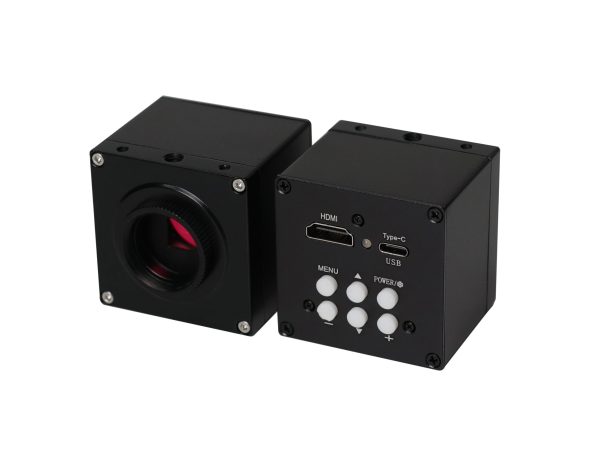

C23-HC -1080P 2MP 1/2.8” CMOS HDMI Type-C high definition 60fps Industrial Camera with key operation Microscope Camera

cámara de medición industrial/промышленная измерительная камера/caméra de mesure industrielle/Industrielle Messkamera

· 1080P HD 2MP, 1/2.8″ CMOS sensor

· C/CS mount , HDMI + Type-C multi-interface

· High Definition 1920*1080

· Multi-function camera (Zoom imaging in electronics and precision machinery, PCB inspection, scientific research analysis, cellphone repair,jewelry identification etc.)

· Scale ruler,center cursor,central line, cross line

· Industrial camera with key operation

· Type-C can be connected to computer for UVC camera use

Category: Tags: , , , , , , , , , , , , , , ,

C23-HC Specification

Sensor2MP,1/2.8" CMOS
Effective Pixels1920*1080
Bit12bit
Pixel Size(μm)2.9μm*2.9μm
FPS60fps
SharpnessAbove 900TV line
Scan modeProgressive scan
Shutter TypeElectronic shutter
Dynamic Range>90dB
SNR55dB
Sensitivity2.0 V/lux-sec (550nm)
Exposure ModeManual / Auto
White BalanceManual / Auto
Lens MountC/CS
InterfaceHDMI + Type-C
Image CaptureNo
Output Resolution1920*1080(16:9)
1920*1080(16:10)
1280*720(16:9)
1024*768(4:3)
USB functionType-C for UVC camera
Remote ControlNo
Power SupplyDC 5V/1A (Type-C)

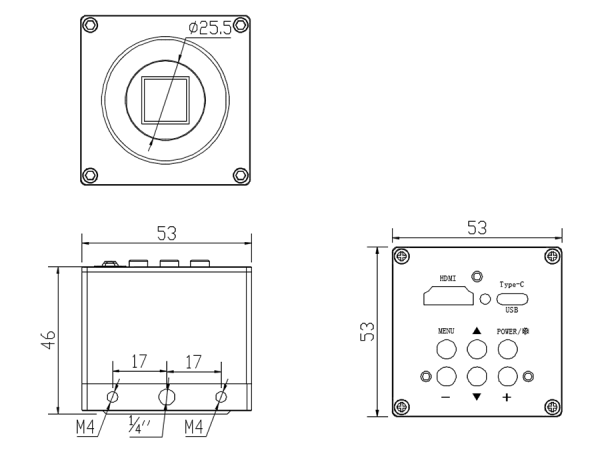

Size53*53*45mm
Functions1.Cross:1-30 cross group,color optional,and line is adjustable in width.
2.Type-C can be connected to computer for UVC camera use.
3.Scale ruler,center cursor,central line.
