FT-F703 Portable FHD Document Camera

Optical zoom Full High-Definition camera.
10x optical zoom,10x digital zoom, total 100x zoom.
1080P@60fps, present high-definition and smooth graphics.
Capable of capturing A3-sized images.
Built-In Microphone.
PC-free functionality: real-time annotation, video recording, photo taking, etc.
Various ways to control: mouse, IR remote control, and software.
Support for TF card storage.
Foldable design with multiple adjustable angls, and lens can be mechanically rotated.
Physical buttons for easy control: Light, Rotate, Zoom in/out, Brightness+-, AF, etc.

FT-F703 Specification

Image Sensor		1/2.8" CMOS
Total Pixels		2MP
Zoom		10x optical ,10x digital (total 100x) zoom
Shooting Area		A3 and below
Focus		Automatic / Manual
Horizontal Resolution		1000TV cable
Resolution/ Frame rate	USB	1920*1080@30fps
	HDMI	19201080, 12801024, 1024*768 / 30fps(default), 60fps(Optional)
	VGA
Lamp		LED light with three-level dimming
White balance		Automatic
Free Software		Visualizer, supports Windows® 7, 10, 11
IR Remote Control		Standard
Built-in Mic		Support
Operating Voltage		12V (external DC12V power adapter)
Input Interface		VGA1 , HDMI1 , Audio1, USB2.0 A1
Output Interface		VGA1 , HDMI1 , Audio1, USB2.0 B1

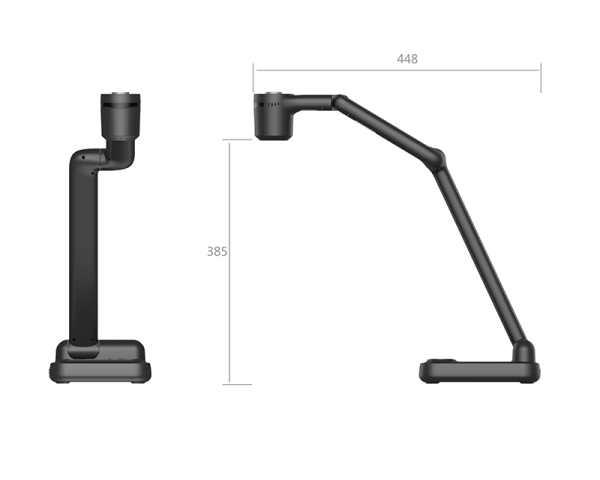

Device Dimension		Unfold Dimension：373.5110160mm; Fold Dimension：448385160mm
Expandable Storage		Support(TF card only)
USB Video Stream Format		Support MJPG
Image Format		Support JPG/BMP
Image Storage		①Stored on a TF card via the built-in PC-free software; ②Stored on the computer via PC software (Visualizer).
Buttons Function		Power, Sourcing, Lamp, Rotate, Auto Focus, Zoom in, Zoom out, Brightness+-
Net Weight		1.7KG

Features	via IR Remote	via Software	via Mouse
Annotation	×	√	√
Snap/Recording	√	√	√
Playback	×	√	√
Split Screen	×	√	√
Picture in picture	×	×	√
Freeze	√	√	√
Auto focus	√	√	√
Zoom In/Out	√	√	√
Partial Zoom	×	×	√
Rotation	√	√	√
Mirror	√	×	√
Color/Black and White	√	√	√
Brightness+-	√	√	√
Text/Picture	√	√	√
Sharpness+-	√	√	√
Negative	√	×	×
