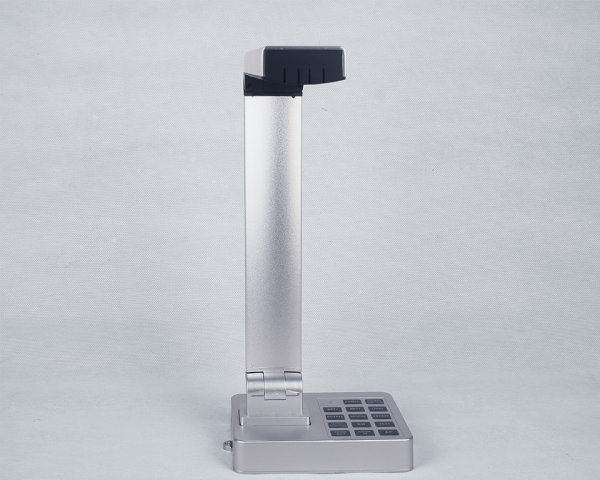

FT-F601 Portable Document Camera

  1. 16-megapixel camera.
  2. 4K: 2x lossless zoom, 1080P: 8x lossless zoom, 6x digital zoom.
  3. Multiple output interfaces: USB, VGA, and HDMI.
  4. Dual-sided LED lens lighting design for uniform illumination and spot-free images.
  5. Advanced image features: video freeze, negative, rotation, text mode.
  6. PC-free functionality: real-time annotation, video recording, photo taking, etc
  7. Built-in microphone.
  8. Support for free Visualizer software.
Categories: , , Tags: , , , , , , , , , , ,

FT-F601 Specification

Image Sensor1/2.8" CMOS
Total Pixels16MP
Zoom4K: 2x lossless zoom, 1080P: 8x lossless zoom, 6x digital zoom, total magnification ≥50x
Shooting AreaA4(A3 Optional)
FocusFixed focus
Resolution/ Frame rateUSB4608x3456@8fps, 3840x2160@15fps, 1920x1080@15fps
HDMI3840x2160@20fps, 1920x1080@30fps
VGA1920x1080@30fps
LampLED light with three-level dimming
White balanceAutomatic/Manual
Free SoftwareVisualizer, supports Windows® 7, 10, 11
Operating VoltageDC12V/1A
Input InterfaceVGA*1, USB2.0 A*1
Output InterfaceVGA*1 , HDMI*1, USB2.0 B*1
Device DimensionFolding: 150*140*350mm;
Unfolding: 265*150*350mm
Expandable StorageSupport(TF card only)
Built-in MicSupport
USB Video Stream FormatSupport MJPG
Image FormatSupport JPG/BMP
Image Storage①Stored on a TF card via the built-in PC-free software;
②Stored on the computer via PC software (Visualizer).
Buttons FunctionPower, Signal Switch, Light, Resolution, etc.
Net Weight1.36kg
Featuresvia Softwarevia Buttonsvia Mouse
Annotation√×√
Snap/Recording√×√
Playback√×√
Split Screen√×√
Picture in picture××√
Freeze√√√
Zoom In/Out√√√
Partial Zoom××√
Rotation√√√
Mirror×××
Color/Black and White√√√
Brightness+-√√√
Text/Picture√√√
Sharpness+-√×√
Negative×√×
