| Sensor | 8MP, 1/1.8” color SC850SL |
| Effective Pixels | 3840*2160 |
| Bit | 12bit |
| Pixel Size(μm) | 2.0μm*2.0μm |
| FPS | 1920×1080@30fps |
| Scan mode | Progressive scan |
| Shutter Type | Rolling shutter |
| Dynamic Range | Linear Mode 75dB; Wide Dynamic Range Mode >100 dB |
| SNR | 39dB |
| Exposure Mode | Manual / Auto |
| White Balance | Manual / Auto |
| Lens Mount | C/CS |
| Interface | HDMI + USB2.0 |
| Image Capture | U-disk memory |
| Output Resolution | 1920*1080 60Hz |
| USB function | UVC camera or U-disk |
| Remote Control | Yes |
| Power Supply | DC 12V/2A Adapter |

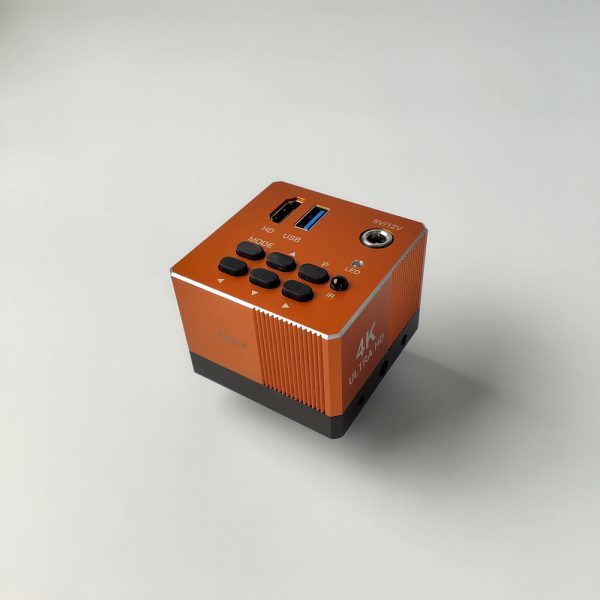

B610 8MP,1/1.8″ high definition Industrial Camera with key operation Microscope Camera
Outstanding features:
1: Language support:English, Simplified Chinese, Traditional Chinese,
2: Crosshairs: 1 to 16 groups of crossharis, the lines color, width and position are adjustable
3: Digital magnification:support 2× magnification
4: Measurement ruler tool:Length, proportion, and color are adjustable; supports 3 concentric circles with adjustable radii and 2 adjustable rays ranging from 0–360°.
5: One USB2.0 port: USB flash drive or UVC camera
6: USB port auto identification:USB flash drive or USB cable connected to PC
7: Time setting:By manual(Needs to be reset after a power outage)
8: Cloning function: Allows exporting/importing settings for quick parameter setting replication.
9: Control via buttons on the camera or remote control. The buttons supporting menu-based parameter adjustment, photo taking, video recording, and on-device preview.
10: Supports segmented video recording (5-30min.)
11: Upgrade: Supports upgrading via USB drive.
