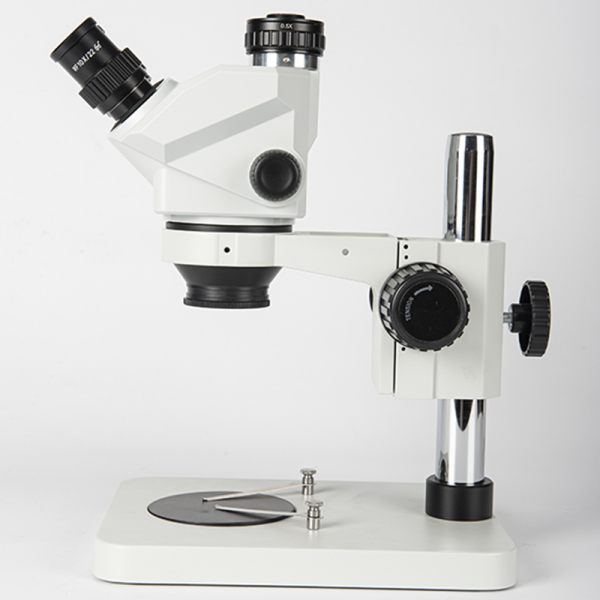

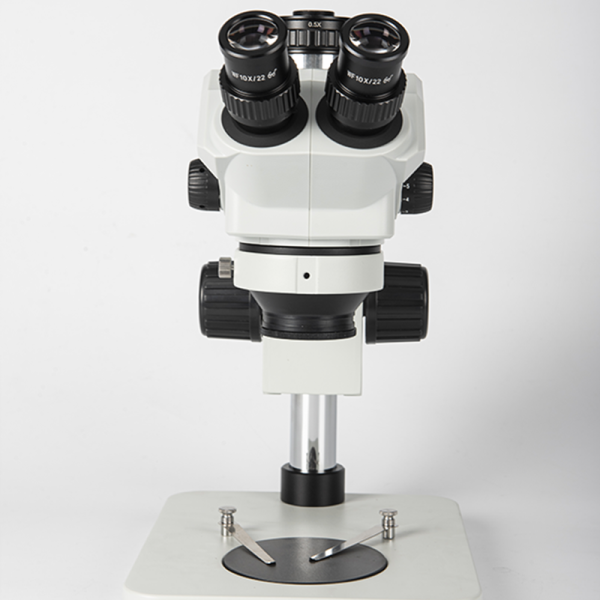

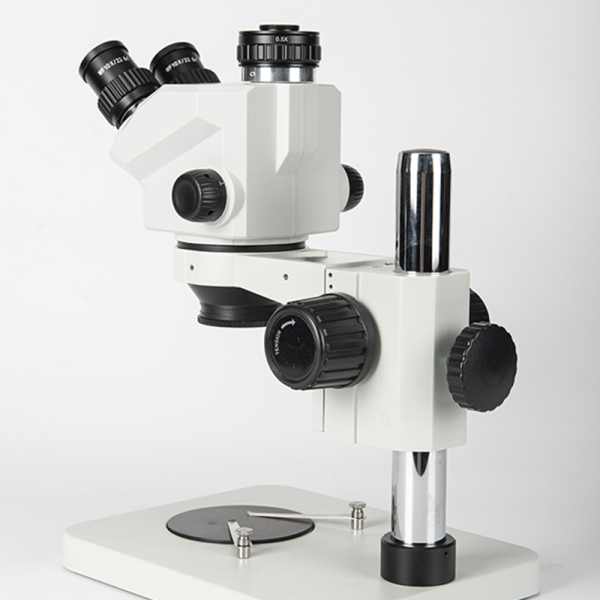

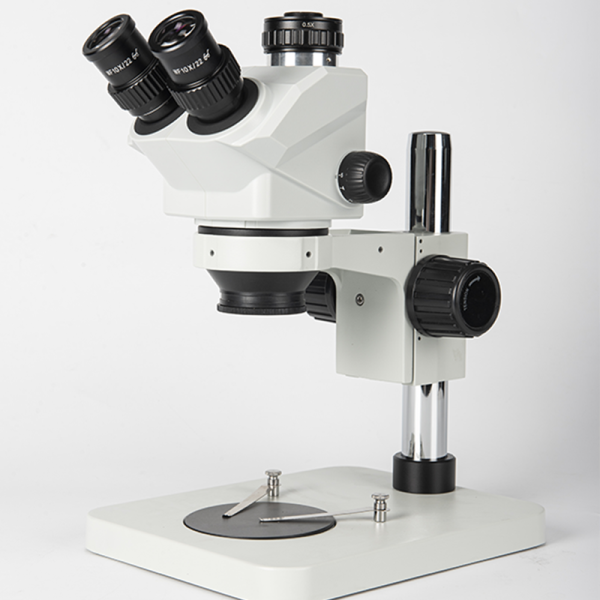

MicroScope for Mobile Repair Stereo Microscope Mobile Electronic Repairing 7-50X Trinocular Microscope

Model: PH7050-B1

Magnification:continuous zoom 7X to 50X
Head: 45-degree inclined 360-degree swiveling trinocular
Eyepiece: WF10X/22MM
Objective: 0.7-5.0X
Camera connector：1/2ctv

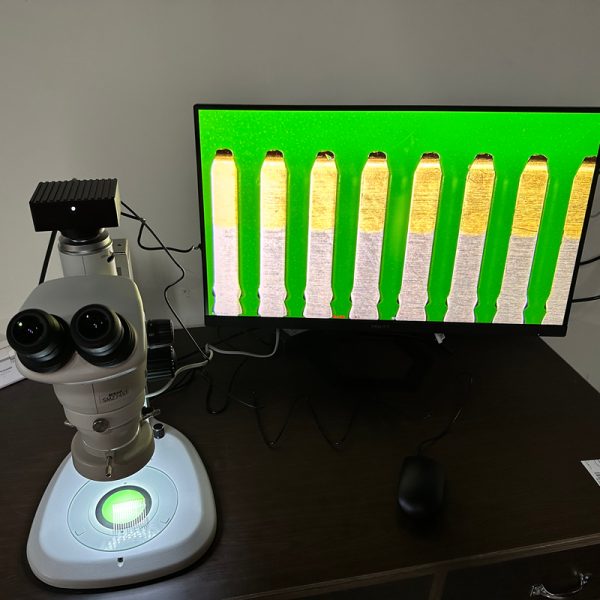

Monitor and eyepiece. Synchronous zoom
Accessories: 144 adjustable led light & dust proof Lens

分类： 标签： , , ,
Viewing head45°inclined binocular head, interpupillary distance: 54-76mm,diopter +/-5 adjustable
45°inclined binocular head, interpupillary distance: 54-76mm,diopter +/-5 adjustable,splitting ratio R:T=50:50, with 0.5x C-mount
EyepieceHigh eye-point wide field eyepiece WF10X/22mm (standard configuration)
Zoom range0.7x-5.0x
Zoom ratio1:7.14
Working distance100mm
EyepieceStandard configurationAuxiliary lens
0.5x2x
Working distance 100mmWorking distance 165mmWorking distance 30mm
MagnificationField of ViewMagnificationField of ViewMagnificationField of View
WF10X/22MM7x-50x4.4-31.4mm3.5x-25x8.8-62.8mm14x-100x2.2-15.7mm
WF10X/10MM14x-100x1.0-7.1mm7x-50x2.0-14.2mm28x-200x0.5-3.5mm
