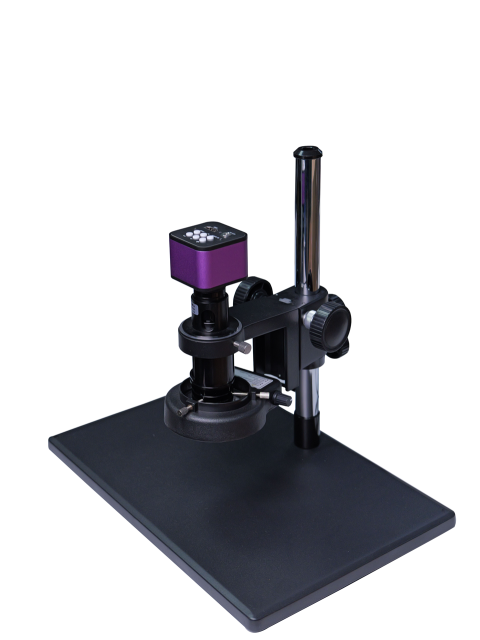

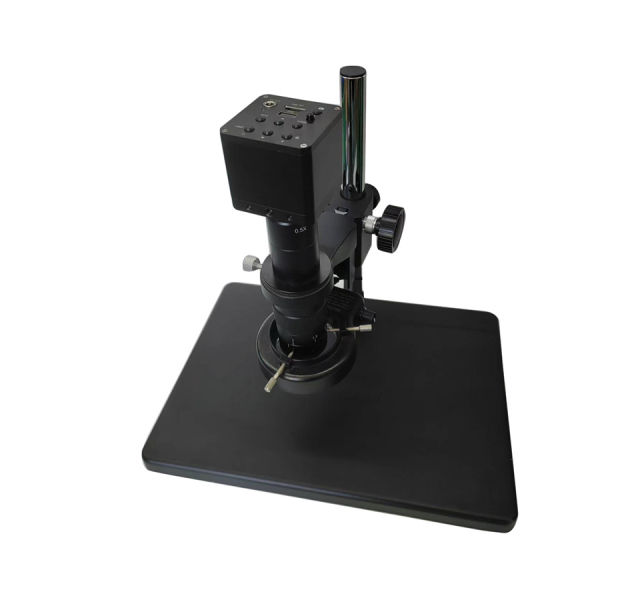

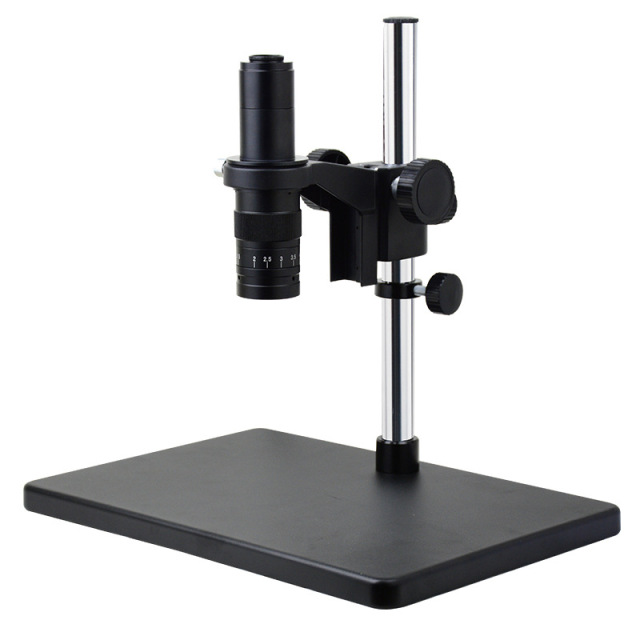

Monocular Stereo Zoom Video Microscope

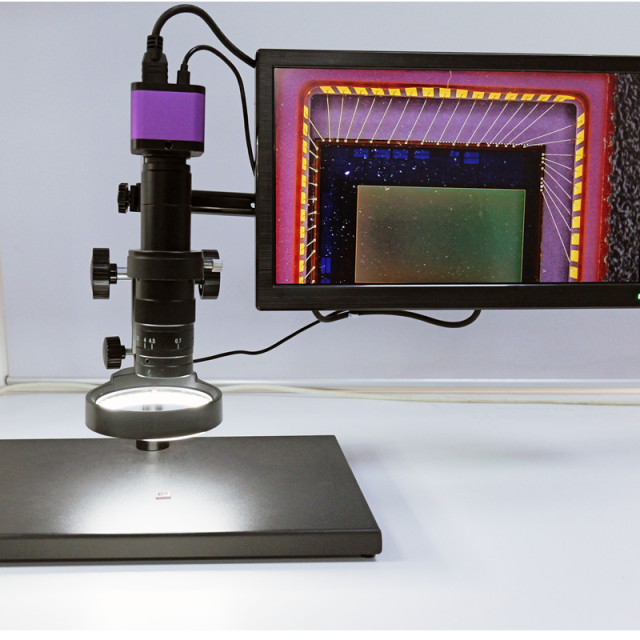

Adopt the advanced multi-layer coating technology. It offers sharp clear images, designed for using with a CCD camera. It is widely used in electronic industry, educational demonstration and agricultural research for micro-object observation, inspection and measurement.

Specifications

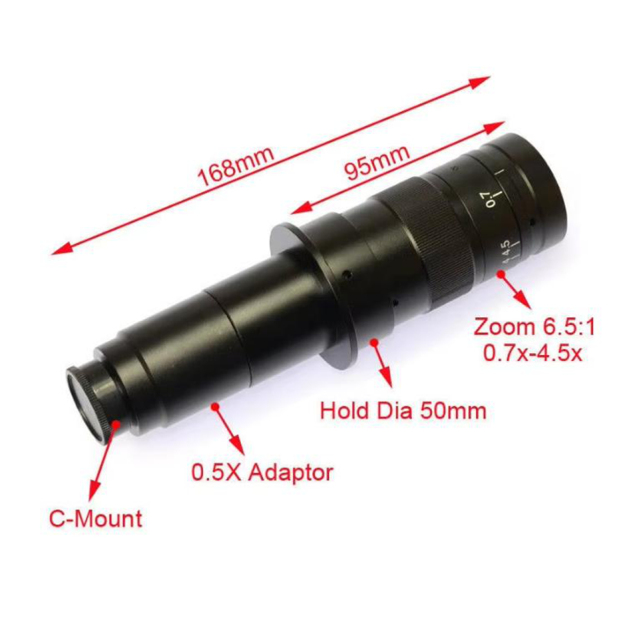

continuous zoom 0.7X to 4.5X

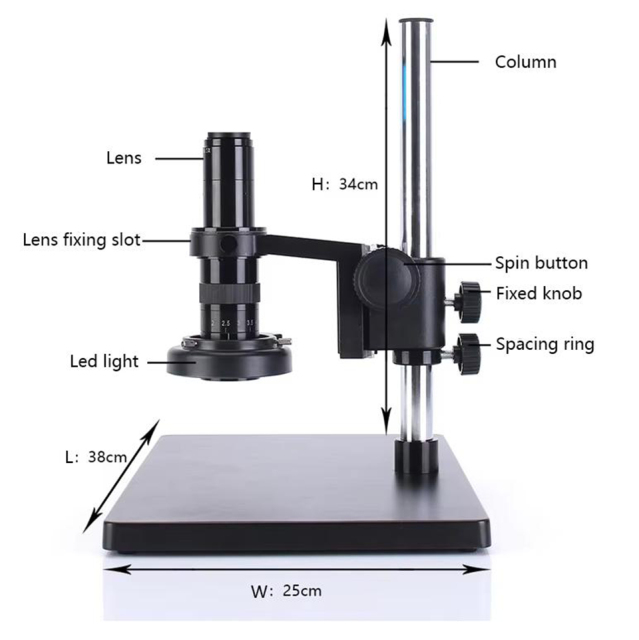

The bracket focusing range 62mm, mounting φ50mm for microscope body

Big base, column diameter φ25mm, height 34cm

Can be connected to industrial camera

GET A QUOTE

10A monocular microscope Specification

EYEPIECE	Standard		Auxiliary Lens 0.5x		Auxiliary Lens 2x
	Working distance 100mm		Working distance 165mm		Working distance 30mm
	Magnification	Field of View	Magnification	Field of View	Magnification	Field of View
0.5X	0.35x-2.25x	17.6-2.7mm	0.175x-1.125x	35-5mm	0.7x-4.5x	8.8-1.3mm
1X	0.7x-4.5x	9-1.6mm	0.35x-2.25x	17.6-3mm	1.4x-9x	4-0.71mm
