| Image Sensor | 1/2.8" CMOS | |
| Total Pixels | 16MP | |
| Zoom | 4K: 2x lossless zoom, 1080P: 8x lossless zoom, 6x digital zoom, total magnification ≥50x | |
| Shooting Area | A4(A3 Optional) | |
| Focus | Fixed focus | |
| Resolution/ Frame rate | USB | 4608x3456@8fps, 3840x2160@15fps, 1920x1080@15fps |
| HDMI | 3840x2160@20fps, 1920x1080@30fps | |
| VGA | 1920x1080@30fps | |
| Lamp | LED light with three-level dimming | |
| White balance | Automatic/Manual | |
| Free Software | Visualizer, supports Windows® 7, 10, 11 | |
| Operating Voltage | DC12V/1A | |
| Input Interface | VGA*1, USB2.0 A*1 | |
| Output Interface | VGA*1 , HDMI*1, USB2.0 B*1 | |
| Device Dimension | Folding: 150*140*350mm; Unfolding: 265*150*350mm |
|
| Expandable Storage | Support(TF card only) | |
| Built-in Mic | Support | |
| USB Video Stream Format | Support MJPG | |
| Image Format | Support JPG/BMP | |
| Image Storage | ①Stored on a TF card via the built-in PC-free software; ②Stored on the computer via PC software (Visualizer). |
|

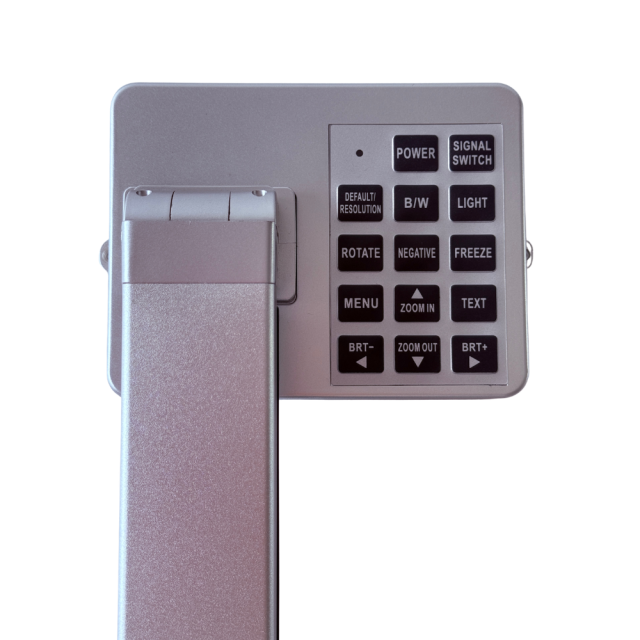

| Buttons Function | Power, Signal Switch, Light, Resolution, etc. | |
| Net Weight | 1.36kg | |
