| Image Sensor | 1/2.8" CMOS |
| Total Pixels | 2MP |
| Zoom | 10x lossless zoom, 10x digital zoom, total magnification 100x |
| FOV | 68° |
| Recommended Camera Working Distance | 1500-4000mm |
| Shooting Area | Depends on camera mounting height. (eg. Mounting height:2100mm, total area:2100*1180mm) |
| Focus | Automatic / Manual |
| Resolution | 1920x1080, 1024x768 |
| Horizontal Resolution | 1000TV cable |
| Frame rate | 30fps/45fps |
| White balance | Automatic |
| Free Software | Visualizer, supports Windows® 7, 10, 11 |
| IR Remote Control | Standard |
| Built-in Mic | Support |
| Operating Voltage | DC 12V |

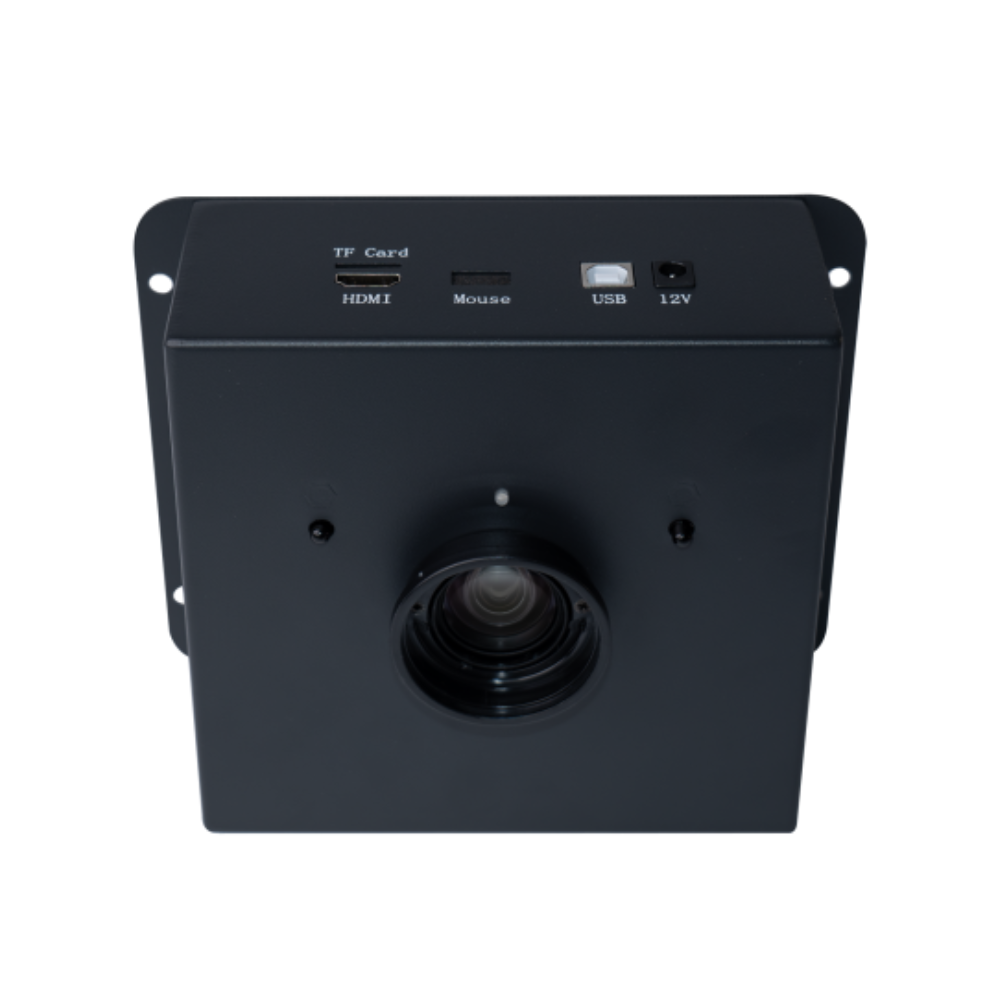

| Interface | HDMI *1 USB2.0*1 |
| Device Dimension | 180*150*78mm |
| USB Video Stream Format | Support MJPG |
| Image Format | Support JPG/BMP |
| Image Storage | Stored on the computer via PC software (Visualizer). |
| N.W./G.W. | 0.77KG/1.49KG |
| Features | via Software | via IR Remote |
|---|---|---|
| Annotation | √ | × |
| Snap/Recording | √ | × |
| Playback | √ | × |
| Split Screen | √ | √ |
| Picture in picture | × | × |
| Freeze | √ | √ |
| Auto focus | √ | √ |
| Zoom In/Out | √ | √ |
| Partial Zoom | × | × |
| Rotation | √ | √ |
| Mirror | × | √ |
| Color/Black and White | √ | √ |
| Brightness+- | √ | √ |
| Text/Picture | √ | √ |
| Sharpness+- | √ | √ |
| Negative | × | √ |
